Super Line By Dentium®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

Internal Hexagon with morse taper

Screwdriver

Platforms

3.6mm
4mm
4.5mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.60mm	3.75mm	3.80mm	4.00mm	4.40mm	4.50mm	4.60mm	4.80mm	5.80mm
7.00mm	FX3607SW(P:3.60mm)	FX4507SW(P:4.50mm)	FX4007SW(P:4.00mm) FX5007SW(P:5.00mm)	FX7007SW(P:7.00mm) FX6007SW(P:6.00mm)
8.00mm	FX3608SW(P:3.60mm) FX3608SWC(P:3.60mm)	FX4508SWC(P:4.50mm) FX4508SW(P:4.50mm)	FX5008SW(P:5.00mm) FX4008SW(P:4.00mm) FX4008SWC(P:4.00mm) FX5008SWC(P:5.00mm)		FX6008SW(P:6.00mm) FX6008SWC(P:6.00mm)		FX7008SWC(P:7.00mm) FX7008SW(P:7.00mm)	FX50085WC(P:5.00mm)	FX70085WC(P:7.00mm)
10.00mm	FX3610SWC(P:3.60mm) FX3610SW(P:3.60mm)	FX4510SWC(P:4.50mm) FX4510SW(P:4.50mm)	FX4010SWC(P:4.00mm) FX5010SWC(P:5.00mm) FX4010SW(P:4.00mm) FX5010SW(P:5.00mm)		FX6010SWC(P:6.00mm) FX6010SW(P:6.00mm)		FX7010SWC(P:7.00mm) FX7010SW(P:7.00mm)	FX50105WC(P:5.00mm)	FX70105WC(P:7.00mm)
12.00mm	FX3612SWC(P:3.60mm) FX3612SW(P:3.60mm)	FX4512SWC(P:4.50mm) FX4512SW(P:4.50mm)	FX5012SWC(P:5.00mm) FX5012SW(P:5.00mm) FX4012SWC(P:4.00mm) FX4012SW(P:4.00mm)		FX6012SWC(P:6.00mm) FX6012SW(P:6.00mm)	FX60125WC(P:6.00mm)	FX7012SW(P:7.00mm) FX7012SWC(P:7.00mm)	FX50125WC(P:5.00mm)	FX70125WC(P:7.00mm)
14.00mm	FX3614SWC(P:3.60mm) FX3614SW(P:3.60mm)	FX4514SWC(P:4.50mm) FX4514SW(P:4.50mm)	FX4014SW(P:4.00mm) FX4014SWC(P:4.00mm) FX5014SWC(P:5.00mm) FX5014SW(P:5.00mm)					FX50145WC(P:5.00mm)

Compatible Components

Components compatible with Dentium® Super Line®

Browse compatible components

Description

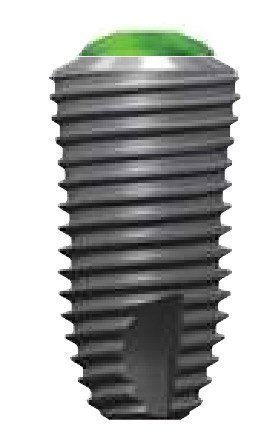

Super Line is a standard dental implant produced by Dentium. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its body is tapered with buttress threads. Its head is straight. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 9 different diameters and 5 different lengths.It is available in 3 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Dentium also offers 16 other implant models.
Specs:
Ø3.6 Unit: mm 08 10 12 14 -0.15 -0.15 -0.15 +0.15 Platform 0 3.6 Body 0 3.4 L Length REF 8 FX3608SWC 03.4 10 FX3610SWC 12 FX3612SWC 14 FX3614SWC Unit: mm Ø4.0 08 10 12 14 +0.2 +0.2 +0.2 *0.2 Platform Ø 4.0 Body Ø 3.8 L Length REF 8 FX4008SWC 03.8 10 FX4010SWC 12 FX4012SWC 14 FX4014SWC Unit: mm 04.5 08 10 12 14 +0.4 +0.4 +-0.4 +0.4 Platform 0 4.5 Body Ø 4.3 Length REF 8 FX4508SWC 04.3 10 FX4510SWC 12 FX4512SWC 14 FX4514SWC Unit: mm Ø5.0 08 10 12 14 -06 0.6 $0.6 Platform Ø 5.0 Body o 4.8 L Length REF 8 FX5008SWC 04.8 10 FX5010SWC 12 FX5012SWC 14 FX5014SWC Ø6.0 Unit: mm 08 10 12 Platform o 6.0 c Body o 4.8 L Length REF 8 FX6008SWC 04.8 10 FX6010SWC 12 FX6012SWC Unit: mm Ø7.0 08 10 12 Platform o 7.0 1.0 c -1.0 c 1.0 Body o 5.8 L Length REF 8 FX7008SWC Ø5.8 10 FX7010SWC 12 FX7012SWC

Components compatible with Dentium® Super Line®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
