Classic HI By Dentoflex®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Hexagon

Screwdrivers

Dimensions

Length \ Diameter	3.50mm	3.75mm	4.00mm	4.25mm	5.00mm
7.00mm		IMHISW3757	IMHISW4007	IMHISW4257	IMHISW5007
8.00mm	IMHI3508	IMHISW3758	IMHISW4008	IMHISW4258	IMHISW5008
10.00mm	IMHI35010	IMHISW37510	IMHISW40010	IMHISW42510	IMHISW50010
11.50mm	IMHI350115	IMHISW375115	IMHISW400115	IMHISW425115	IMHISW500115
13.00mm	IMHI35013	IMHISW37513	IMHISW40013	IMHISW42513	IMHISW50013
15.00mm	IMHI35015	IMHISW37515	IMHISW40015	IMHISW42515	IMHISW50015

Compatible Components

Components compatible with Dentoflex® Classic HI®

Browse compatible components

Description

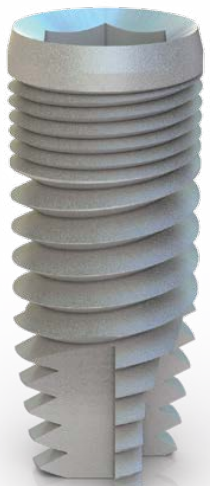

Classic HI is a standard dental implant produced by Dentoflex. It's a bone level implant. Its connection is internal, with a hexagon shape with internal bevel. Its head is straight and has microthreads. Its body is tapered with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 5 different diameters and 6 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Dentoflex also offers 20 other implant models.

Components compatible with Dentoflex® Classic HI®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
