Suprême HI By Dentoflex®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Hexagon

Screwdrivers

Dimensions

Length \ Diameter	3.50mm	3.75mm	4.25mm	5.00mm
8.50mm	IMOCSWHIS35085	IMOCSWHIS37585	IMOCSWHIS42585	IMOCSWHIS50085
10.00mm	IMOCSWHIS35010	IMOCSWHIS37510	IMOCSWHIS42510	IMOCSWHIS50010
11.50mm	IMOCSWHIS350115	IMOCSWHIS375115	IMOCSWHIS425115	IMOCSWHIS500115
13.00mm	IIMOCSWHIS35013	IMOCSWHIS37513	IMOCSWHIS42513	IMOCSWHIS50013
15.00mm	IMOCSWHIS35015	IMOCSWHIS37515	IMOCSWHIS42515	IMOCSWHIS50015

Compatible Components

Components compatible with Dentoflex® Suprême HI®

Browse compatible components

Description

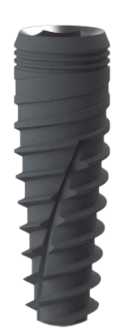

Suprême HI is a standard dental implant produced by Dentoflex. It's a bone level implant. Its connection is internal, with a hexagon shape with internal bevel. Its head is straight and has microthreads. Its head has a bevel. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Dentoflex also offers 20 other implant models.
Specs:
Diâmetro Comprimentos 0 3,50 8,50 mm 10,0 mm 11,5 mm 13,0 mm 15,0 mm IMOCSWHIS35085 IMOCSWHIS35010 IMOCSWHIS350115 IMOCSWHIS35013 IMOCSWHIS35015 3,75 8,50 mm 10,0 mm 11,5 mm 13,0 mm 15,0 mm IMOCSWHIS37585 IMOCSWHIS37510 IMOCSWHIS375115 IMOCSWHIS37513 IMOCSWHIS37515 4,25 8,50 mm 10,0 mm 11,5 mm 13,0 mm 15,0 mm IMOCSWHIS42585 IMOCSWHIS42510 IMOCSWHIS425115 MOCSWHIS42513 MOCSWHIS42515 2 5,00 8,50 mm 10,0 mm 11,5 mm 13,0 mm 15,0 mm IMOCSWHIS50085 IMOCSWHIS50010 MOCSWHIS500115 IMOCSWHIS50013 IMOCSWHIS50015

Components compatible with Dentoflex® Suprême HI®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
