Osseospeed EV (Astra Tech) (Flared head) By Dentsply Sirona®
Technical Features
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: Six spline
- Head Shape: Flared
- Head Microthreads: Yes
- Body Shape: Tapered Apex
- Body Threads: V Shaped
- Apex Shape: Dome
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreConnection
Internal with morse taper
Screwdriver
Dimensions
| Length \ Diameter | 4.20mm | 4.80mm |
|---|---|---|
| 8.00mm | 25262 | 25272 |
| 9.00mm | 25263 | 25273 |
| 11.00mm | 25264 | 25274 |
| 13.00mm | 25265 | 25275 |
| 15.00mm | 25266 | 25276 |
| 17.00mm | 25267 | 25277 |
Compatible Components
Components compatible with Dentsply Sirona® Osseospeed EV (Astra Tech) (Flared head)®
Description

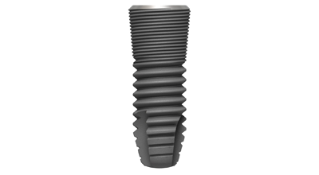

Osseospeed EV (Astra Tech) (Flared head) is a standard dental implant produced by Dentsply Sirona. It's a bone level implant. Its connection is internal, with a six spline shape with morse taper. Its body is tapered apex with v shaped threads. Its head is flared and has microthreads. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. This implant model is fairly recent. It requires a screwdriver of hexagon shape. We don't have a catalog available for this model. Dentsply Sirona also offers 21 other implant models.
Components compatible with Dentsply Sirona® Osseospeed EV (Astra Tech) (Flared head)®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
