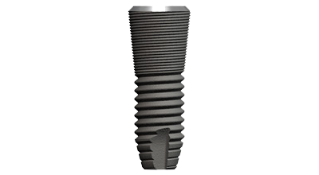

OsseoSpeed TX (Astra Tech) (Flared Head) By Dentsply Sirona®
Technical Features
- Material: CP Titanium
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: Hexagon
- Head Shape: Flared
- Head Microthreads: Yes
- Body Shape: Tapered Apex
- Body Threads: V Shaped
- Apex Shape: Flat
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreConnection
Internal
Hexagon with morse taper
Screwdriver
Dimensions
| Length \ Diameter | 4.50mm | 5.00mm |
|---|---|---|
| 9.00mm | 24951 | 24961 |
| 11.00mm | 24952 | 24962 |
| 13.00mm | 24953 | 24963 |
| 15.00mm | 24954 | 24964 |
| 17.00mm | 24955 | 24965 |
Compatible Components
Components compatible with Dentsply Sirona® OsseoSpeed TX (Astra Tech) (Flared Head)®
Description
OsseoSpeed TX (Astra Tech) (Flared Head) is a standard dental implant produced by Dentsply Sirona. It's a bone level implant. Its connection is internal, with a hexagon shape with morse taper. Its head is flared and has microthreads. Its head has a bevel. Its body is tapered apex with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of cp titanium. This implant model is fairly recent. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Dentsply Sirona also offers 21 other implant models.
Components compatible with Dentsply Sirona® OsseoSpeed TX (Astra Tech) (Flared Head)®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
