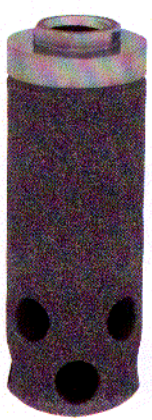

Press Fit Cylinder By IMTEC®
Technical Features
- Level: Bone Level
- Connection Type: External
- Connection Shape: Hexagon
- Head Shape: Straight
- Head Microthreads: No
- Body Shape: Straight
- Body Threads: No Threads
- Apex Shape: Dome
- Apex Hole: Round
- Apex Grooves: No
Identify a dental implant
Learn moreConnection
External
Hexagon
Screwdriver
Dimensions
| Length \ Diameter | 3.30mm | 4.00mm | 4.75mm |
|---|---|---|---|
| 8.00mm |
3308HA(P:3.30mm)
3308(P:3.30mm) |
4008HA(P:4.00mm)
4008(P:4.00mm) |
4808(P:4.75mm)
4808HA(P:4.75mm) |
| 10.00mm |
3310(P:3.30mm)
3310HA(P:3.30mm) |
||
| 11.00mm |
4011(P:4.00mm)
4011HA(P:4.00mm) |
4811HA(P:4.75mm)
4811(P:4.75mm) |
|
| 13.00mm |
3313(P:3.30mm)
3313HA(P:3.30mm) |
4013HA(P:4.00mm)
4013(P:4.00mm) |
4813HA(P:4.75mm)
4813(P:4.75mm) |
| 15.00mm |
3315(P:3.30mm)
3315HA(P:3.30mm) |
4015(P:4.00mm)
4015HA(P:4.00mm) |
4815HA(P:4.75mm)
4815(P:4.75mm) |
Compatible Components
Components compatible with IMTEC® Press Fit Cylinder®
Description
Press Fit Cylinder is a standard dental implant produced by IMTEC. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its head is straight. Its body is straight and doesn't have threads. Its apex has a dome shape,has a hole of round shape, and doesn't have grooves. It is available in 3 different diameters and 5 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. IMTEC also offers 20 other implant models.
Specs:
4.0 mm Universal Press Fit Cylinder, 4.0 mm Head Diameter The 4.0 mm Universal Cylinder implant is prosthetically compatible with most major externally hexed sys See Universal prosthetic flow chart page 59. Included Sterile Use #1740T, 4.0 mm drill for final preparation. 1740T Drill Titanium Plasma Sprayed (T.P.S.) Marking Tri-Spade Drill Size 8 mm 11 mm 13 mm 15 mm 16 In Catalog No. 4008 4011 4013 4015 14 12 Price: $99.00 9 III Combination Hydroxylapatite (H.A.) & Titanium Plasma Sprayed (T.P.S.) O 8 mm 11 mm 13 mm 15 mm Size 8 mm 11 mm 13 mm 15 mm 4.0 mm Implant Lengths Catalog No. 4008HA 4011HA 4013HA 4015HA Price: $99.00 4.75 mm Wide Body Press Fit Cylinder, 4.75 mm Head Diameter The 4.75 mm Cylinder has many inherent advantages where the bone width is adequate. Wide Body 4.75 mm prosthetics are available. See Wide Body Prosthetic Flow Chart Page 60. Included Use #1748T, 4.75 mm drill for final preparation. Sterile 1748T Drill Titanium Plasma Sprayed (T.P.S.) Marking Tri-Spade Dri…
Components compatible with IMTEC® Press Fit Cylinder®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
