PrimaConnex Tapered By Keystone Dental (Lifecore Biomedical)®
Technical Features
Identify a dental implant
Learn moreScrewdriver
Platforms
- wd Wide
- sd Narrow
- rd Regular
Dimensions
| Length \ Diameter | 3.50mm | 4.10mm | 5.00mm |
|---|---|---|---|
| 10.00mm |
15413K(P:3.50mm)
15613K(P:3.50mm) |
15417K(P:4.10mm)
15617K(P:4.10mm) |
15421K(P:5.00mm)
15621K(P:5.00mm) |
| 11.50mm |
15414K(P:3.50mm)
15614K(P:3.50mm) |
15418K(P:4.10mm)
15418 15618K(P:4.10mm) |
15622K(P:5.00mm)
15422K(P:5.00mm) |
| 13.00mm |
15615K
15615K(P:3.50mm) 15415K(P:3.50mm) |
15619K
15419K(P:4.10mm) 15419 15619K(P:4.10mm) |
15423K(P:5.00mm)
15623K 15623K(P:5.00mm) |
| 15.00mm |
15416K(P:3.50mm)
15616K(P:3.50mm) |
15420K(P:4.10mm)
15620K(P:4.10mm) |
15624K(P:5.00mm)
15424K(P:5.00mm) |
Compatible Components
Components compatible with Keystone Dental (Lifecore Biomedical)® PrimaConnex Tapered®
Description

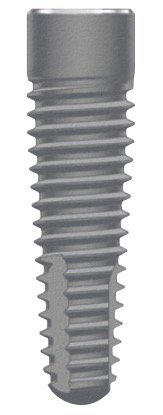

PrimaConnex Tapered is a standard dental implant produced by Keystone Dental (Lifecore Biomedical). Its connection is internal, with a six lobe shape with none. It's a bone level implant. Its head is wide. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of titanium alloy. It is available in 3 different diameters and 4 different lengths.It is available in 3 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Keystone Dental (Lifecore Biomedical) also offers 17 other implant models.
Specs:
PrimaConnex® Implants Tapered* Catalog # Implant Size 3.5 mm 15413K Ø3.5 X 10 mm Length 15414K Ø3.5 X 11.5 mm Length 15415K Ø3.5 X 13 mm Length 15416K Ø3.5 X 15 mm Length 15613K Ø3.5 X 10 mm Length TC 15614K Ø3.5 X 11.5 mm Length TC 15615K Ø3.5 X 13 mm Length TC 15616K Ø3.5 X 15 mm Length TC T 2.4mm 4.1 mm PrimaConnex® Implants Tapered* Catalog # Implant Size 15417K Ø4.1 X 10 mm Length 15418K Ø4.1 X 11.5 mm Length 15419K Ø4.1 X 13 mm Length 15420K Ø4.1 X 15 mm Length 15617K 04.1 X 10 mm Length TC 15618K 04.1 X 11.5 mm Length TC 15619K Ø4.1 X 13 mm Length TC 2.7 mm 15620K Ø4.1 X 15 mm Length TC PrimaConnex Implants Tapered* Catalog # Implant Size 5.0 mm 15421K Ø5.0 x 10 mm Length 15422K Ø5.0 x 11.5 mm Length 15423K Ø5.0 x 13 mm Length 15424K Ø5.0 X 15 mm Length 15621K Ø5.0 X 10 mm Length TC 15622K Ø5.0 X 11.5 mm Length TC 15623K Ø5.0 x 13 mm Length TC 15624K Ø5.0 X 15 mm Length TC 3.3 mm
Components compatible with Keystone Dental (Lifecore Biomedical)® PrimaConnex Tapered®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
