Titamax TI Cortical By Neodent®
Technical Features
Identify a dental implant
Learn moreConnection
External
Hexagon
Screwdrivers
Platforms
- 4.1mm
- 5mm
- default
Dimensions
| Length \ Diameter | 3.30mm | 3.75mm | 4.00mm | 4.50mm | 5.00mm |
|---|---|---|---|---|---|
| 7.00mm | 109.294(P:5.00mm) | ||||
| 9.00mm |
✔(P:3.30mm)
109.140 |
109.284(P:4.10mm) | 109.302(P:4.10mm) | 109.327(P:5.00mm) | 109.295(P:5.00mm) |
| 11.00mm |
✔(P:3.30mm)
109.141 |
109.285(P:4.10mm) | 109.303(P:4.10mm) | 109.328(P:5.00mm) | 109.296(P:5.00mm) |
| 13.00mm |
109.142
✔(P:3.30mm) |
109.286(P:4.10mm) | 109.304(P:4.10mm) | 109.329(P:5.00mm) |
109.297(P:5.00mm)
✔ |
| 15.00mm |
109.143
✔(P:3.30mm) |
109.287(P:4.10mm) | 109.305(P:4.10mm) | ||
| 17.00mm |
✔(P:3.30mm)
109.144 |
109.288(P:4.10mm) | 109.306(P:4.10mm) |
Compatible Components
Components compatible with Neodent® Titamax TI Cortical®
Description

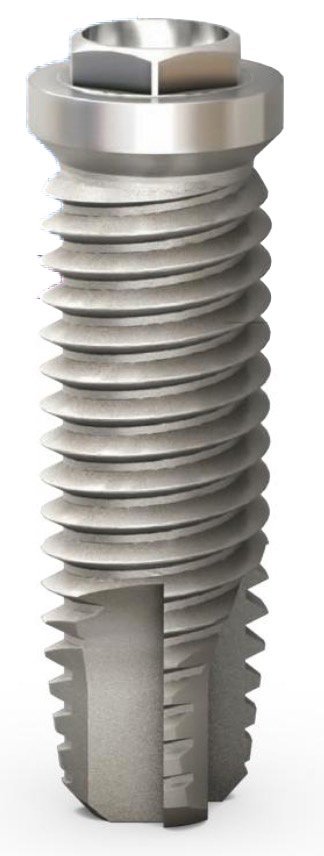

Titamax TI Cortical is a standard dental implant produced by Neodent. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its body is straight with v shaped threads. Its head is wide. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of titanium alloy. It is available in 5 different diameters and 6 different lengths.It is available in 3 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Neodent also offers 28 other implant models.
Specs:
ø3.3 mm 9.0 11.0 13.0 15.0 17.0 DLD I 109.140 109.141 109.142 109.143 109.144 4.5 mm O 5.0 mm 9.0 11.0 13.0 7.0 9.0 11.0 13.0 109.327 109.328 109.329 109.294 109.295 109.296 109.297 Ø 3.75 mm 0 4.0 mm 9.0 11.0 13.0 15.0 17.0 9.0 11.0 13.0 15.0 17.0 109.284 109.285 109.286 109.287 109.288 109.302 109.303 109.304 109.305 109.306 Titamax Ti Implants 7.0 mm 9.0 mm 11.0 mm 13.0 mm 15.0 mm 17.0 mm 0 NeoPoros 109.712 109.713 109.714 109.715 109.716 - - - 0 NeoPoros 109.284 109.285 109.286 109.287 109.288 A - - - a NeoPoros 109.302 109.303 109.304 109.305 109.306 . NeoPoros 109,327 109.328 109.329 NeoPoros 109.294 109,295 109.296 109.297
Components compatible with Neodent® Titamax TI Cortical®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
