TSH By Phibo®

Description

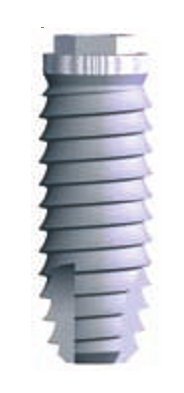

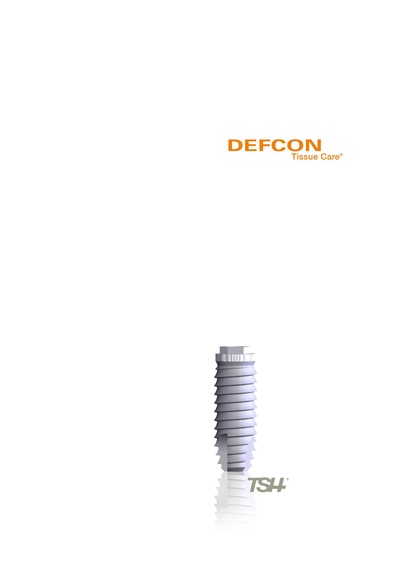

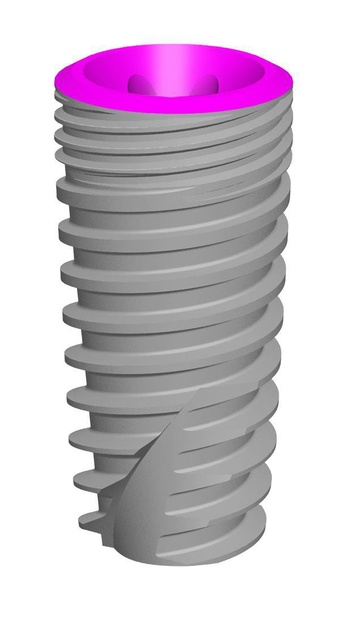

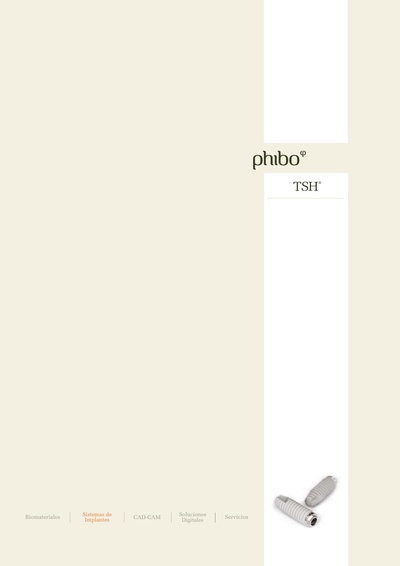

TSH is a standard dental implant produced by Phibo. It's a tissue level implant. Its connection is external, with a hexagon shape with none. Its body is straight with reverse buttress threads. Its head is wide. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of cp titanium. It is available in 4 different diameters and 6 different lengths.It is available in 3 different platforms. This implant model is quite old. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Phibo also offers 4 other implant models.
Specs:
Plataforma Plataforma Plataforma Plataforma 3.3 mm 4.0mm 4.0 mm 5.0mm - - Altura hexágono Altura hexágono Altura hexagono Altura hexágono 1.0 mm 0.7 mm 0.7 mm 1.0 mm Métrica interna 1.8 Métrica interna 2.0 Métrica interna 2.0 Métrica Interna 2.0 Cuerpo Cuerpo Cuerpo Cuerpo 3.3 mm 3.6 mm 4.2 mm 4.8 mm S2 S3 S4 S5 Referencia Altura Referencia Altura S2 S3 TSH 02.100 10.0 mm TSH 03.085 8.5 mm TSH 02.115 11.5 mm TSH 03.100 10.0 mm TSH 02.130 13.0 mm TSH 03.115 11.5 mm TSH 02.145 14.5 mm TSH 03.130 13.0 mm TSH 02.160 16.0 mm TSH 03.145 14.5 mm TSH 03.160 16.0 mm Referencia S4 Altura S5 Referencia Altura TSH 04.085 8.5 mm TSH 05.085 8.5 mm TSH 04.100 10.0 mm TSH 05.100 10.0 mm TSH 04.115 11.5 mm TSH 05.115 11.5 mm TSH 04.130 13.0 mm TSH 05.130 13.0 mm TSH 04.145 14.5 mm TSH 04.160 16.0 mm

Components compatible with Phibo® TSH®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
