Simple By Tree-Oss®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Screwdrivers

Dimensions

Length \ Diameter	3.30mm	3.70mm	4.20mm	5.00mm
6.50mm	✔	✔	✔	✔
8.50mm	✔	✔	✔	✔
10.00mm	✔	✔	✔	✔
11.50mm	✔	✔	✔	✔
13.00mm	✔	✔	✔	✔
15.00mm	✔	✔	✔	✔

Compatible Components

Components compatible with Tree-Oss® Simple®

Browse compatible components

Description

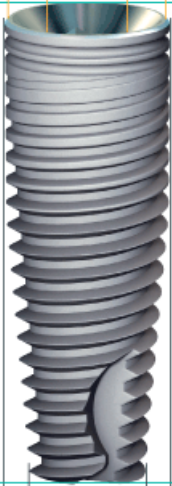

Simple is a standard dental implant produced by Tree-Oss. Its connection is internal, with a hexagon shape with internal bevel. It's a bone level implant. Its head is straight and has microthreads. Its body is tapered with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 6 different lengths. This implant model is fairly recent. It requires a screwdriver of hexagon shape. We don't have a catalog available for this model. Tree-Oss also offers 7 other implant models.

Components compatible with Tree-Oss® Simple®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
