Microcone By Medentika®

Technical Features

Level: Bone Level
Connection Type: Internal
Head Shape: Straight
Head Microthreads: No
Body Shape: Straight
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

Manufacturer Page

Identify a dental implant

Learn more

Dimensions

Length \ Diameter	3.00mm	3.50mm	4.00mm	4.50mm	5.00mm
6.50mm			2-01-35	2-01-53 2-01-41	2-01-47
8.00mm		2-01-30	2-01-36	2-01-42	2-01-48
9.00mm		2-01-31	2-01-37	2-01-43 2-01-54	2-01-49
11.00mm	1-01-06	2-01-32	2-01-38	2-01-44 2-01-55	2-01-50
13.00mm	1-01-07	2-01-33	2-01-39	2-01-56 2-01-45	2-01-51
15.00mm	1-01-08	2-01-34	2-01-40	2-01-46	2-01-52

Description

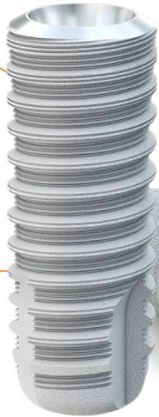

Microcone is a standard dental implant produced by Medentika. It's a bone level implant. Its connection is internal with morse taper. Its body is straight with v shaped threads. Its head is straight. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 5 different diameters and 6 different lengths. We don't have a catalog available for this model. Medentika also offers 6 other implant models.
Specs:
Length diameter L6.5 L8.0 L9.0 L11.0 L13.0 L15.0 NI° D 3.0 I I I 1-01-06 1-01-07 1-01-08 D 3.5 Il I I 2-01-30 2-01-31 2-01-32 2-01-33 2-01-34 D 4.0 Il I 2-01-35 2-01-36 2-01-37 2-01-38 2-01-39 2-01-40 RI° D 4.5 2-01-41 2-01-42 2-01-43 2-01-44 2-01-45 2-01-46 D 4.5/3.5 conical I 2-01-53 2-01-54 2-01-55 2-01-56 D 5.0 2-01-47 2-01-48 2-01-49 2-01-50 2-01-51 2-01-52 . Implant connection NI Implant connection RI (Narrow Interface) (Regular Interface)
