Quattrocone By Medentika®
Technical Features
Identify a dental implant
Learn moreScrewdriver
Dimensions
| Length \ Diameter | 3.50mm | 3.80mm | 4.30mm | 5.00mm |
|---|---|---|---|---|
| 7.00mm | 3-01-16 | 3-01-06 | 3-01-11 | |
| 9.00mm | 3-01-02 | 3-01-17 | 3-01-07 | 3-01-12 |
| 11.00mm | 3-01-03 | 3-01-18 | 3-01-08 | 3-01-13 |
| 13.00mm | 3-01-04 | 3-01-19 | 3-01-09 | 3-01-14 |
| 15.00mm | 3-01-05 | 3-01-20 | 3-01-10 | 3-01-15 |
Description

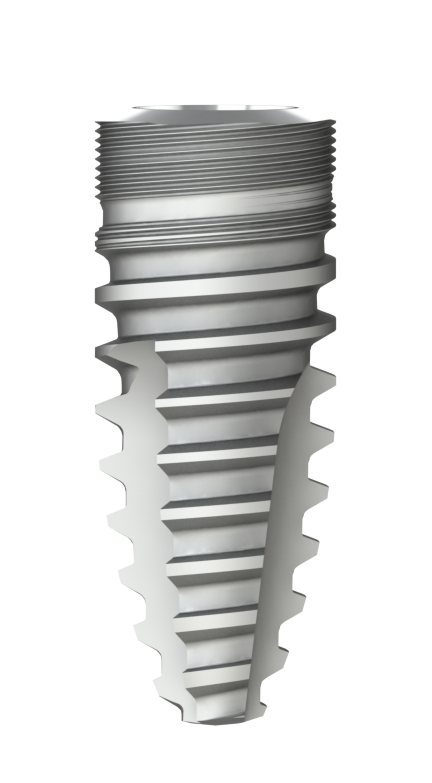

Quattrocone is a standard dental implant produced by Medentika. It's a bone level implant. Its connection is internal, with a no anti-rotational shape with morse taper. Its head is straight and has microthreads. Its head has a bevel. Its body is tapered with buttress threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths. This implant model is fairly recent. It requires a screwdriver of hexagon shape. We don't have a catalog available for this model. Medentika also offers 6 other implant models.
