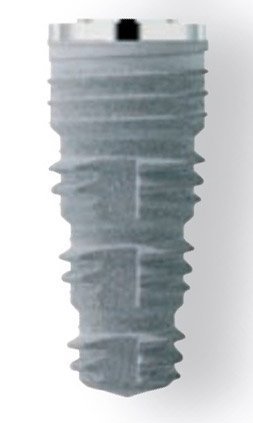

Frialit Plus By Dentsply Sirona®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Hexagon

Screwdrivers

Dimensions

Length \ Diameter	3.20mm	3.40mm	3.80mm	4.50mm	5.50mm	6.50mm
8.20mm				36-2450	36-2460
10.20mm				36-2451	36-2461	36-2471
11.20mm			36-2441
11.30mm		36-2431
13.20mm			36-2443	36-2453	36-2463	36-2473
13.30mm		36-2433
15.20mm	36-2445			36-2455	36-2465	36-2475
15.30mm		36-2435

Compatible Components

Components compatible with Dentsply Sirona® Frialit Plus®

Browse compatible components

Description

Frialit Plus is a standard dental implant produced by Dentsply Sirona. It's a bone level implant. Its connection is internal, with a hexagon shape with none. Its head is straight. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 6 different diameters and 8 different lengths. This implant model is quite old. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Dentsply Sirona also offers 21 other implant models.
Specs:
36 - 2431 D 3,4 / L 11³ 36 - 2433 D 3,4 / L 13³ 36 - 2435 D 3,4 / L 15³ 36 - 2441 D 3,8 / L 11² 36 - 2443 D 3,8 / L 13² 36 - 2445 D 3,8 / L 15² 36 - 2450 D 4,5 / L 8² 36 - 2451 D 4,5 / L 10² 36 - 2453 D 4,5 / L 13² 36-2455 - D 4,5 / L 15² 36 - 2460 D 5,5 / L 8² 36 - 2461 D 5,5 / L 10² 36 - 2463 D 5,5 / L 13² 36 - 2465 D 5,5 / L 15² 36 - 2471 D 6,5 / L 10² 36 - 2473 D 6,5 / L 13² 36 - 2475 D 6,5 / L 15²

Components compatible with Dentsply Sirona® Frialit Plus®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
